4" Deep Rib Panel

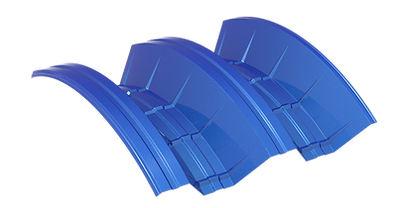

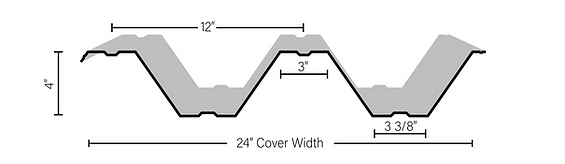

The 4” deep Rib Panel is a structural roof panel with 4" deep ribs,12" o.c. for an overall cover width of 24". The panel is installed with exposed fasteners. The panel is available straight or curved (convex only).

Features
  • Panel Cover Width: 24"


  • Straight Length: Cut to customer specifications (6'- 0" min.)


  • Finish: Kynar   500    (solid or metallic)


  • Colors: Choice of up to 9 standard colors


  • Curving:

    • Convex Only - 20'- 0" min. radius

    • Panel Arc Length: 26'- 0" max.

​     Subject to Minimum Quantities


  • Galvalume  Clear Coat available as Unpainted Only


  • Minimum radius will vary with gauge and intrinsic properties of the specific substrate
